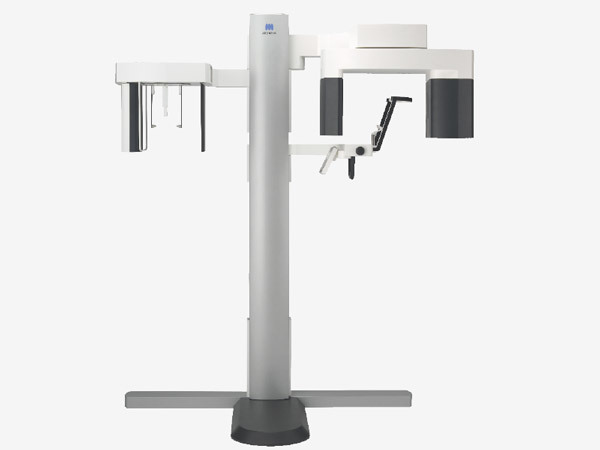

The unique image quality of the Veraview X800 in 2D and 3D gives you the safety to make a precise diagnosis even in the most demanding cases and to choose the best possible treatment.

The new top class of combination devices: „Total Performance Imaging“

With the Veraview X800 MORITA presents the new top class of combination devices. One of its outstanding features is it combines a unique image quality for 3D images with an equally brilliant image quality for panoramic images. Its unique performance is enhanced by a multitude of innovative techniques in the fields of image processing, dose minimization and operating functionality. The Veraview X800 is therefore the ideal solution if you want to comprehensively increase and secure diagnostic competence, diagnostic reliability and treatment success in your dental practice.

Peak values in sharpness: 80 μm and 2.5 LP/mm

The quality of the imaging is the basis for everything - for a reliable diagnosis even in difficult cases, for the trust of your patient and for a successful treatment. This is where the Veraview X800 delivers superior performance in both small and large volumes. One example: For field of view (FOV) exposures Ø 40 x H 40 mm, the voxel size is an impressive 80 μm with a brilliant resolution of 2.5 LP/mm.
Image quality like this gives you entirely new diagnostic capabilities. You can recognize even the smallest structures of bones and tissues. Thus you can be sure to make the right decision for the best possible treatment right from the start.

Innovative highlight: Horizontal X-ray beam and variable sensor positioning

A major highlight of the Veraview X800: In CBCT images, the X-ray beam is horizontal and the Flat Panel Detector (FPD) position is in-line with the X-ray focal point. For panoramic images, the position of the FPD can be shifted so that the angle of the X-ray beam can be adjusted from horizontal to the optimum of 5º.
This innovative and MORITA-exclusive solution ensures that 3D and 2D images are created under optimum exposure conditions. The result: superior image quality in 3D imaging by minimizing artifacts and distortion, as well as brilliant image quality in 2D imaging by reduction of the shadow of cortical bones and by suppression of the hard palate.
Or to put it another way: The Veraview X800 offers you „two complete imaging systems in one“, with a 100% performance for both types of imaging. This is unique in the field of combination systems.
