Lubrina 2 Brochure

รายละเอียด

กลุ่มสินค้า HANDPIECES AND INSTRUMENTS

ข้อมูลสินค้า

Color Guide

Specifications

รายละเอียดเพิ่มเติม

Cleans one turbine in approximately 20 seconds
Oil usage amount is reduced to 1/4
Faster maintenance with excellent cost savings

Since the air-blow system can remove residual water completely using clean air, the efficiency of lubrication is enhanced with oil usage only 1/4 of that compared to manual lubrication. Daily maintenance cost is therefore reduced. In addition, the system can remove surplus oil effectively, allowing maintenance in a short time*1.

Greatly shortens the maintenance process

Maintenance of one turbine in approximately 20 seconds

Example: One turbine and contra angle by Morita and one turbine and contra angle by another manufacturer.

Handpiece and spray compatibility

By replacing the coupling, Lubrina 2 facilitates the maintenance of Tri Auto ZX2 and Dentaport ZX contra-angles, air driven handpieces (ISO 9168/Type 3 joint) as well as all contra-angles and straight handpieces (ISO 3964/E-Type joint). Lubrina 2 is compatible with 4-hole, 5-hole, and 6-pin connections. With its dual lubrication system, one or two different brands of spray may be used in the same cycle. Several brands of spray are compatible by using an optional spray holder adapter.

_{*1 Comparison with the long mode of our previous Lubrina
*2 Approximately 40 seconds for contra-angle handpiece}

_{Clean Air-Blow System}

The double-conduit design allows the clean air-blow system to achieve clean air.

By employing the dual solenoid valves and clean air dedicated conduit, the system can supply clean air without a mix of oil. During the water removal process before lubrication, the system removes the water in the head which maximizes lubrication results. During idling after lubrication, the surplus oil can be effectively removed by clean air.

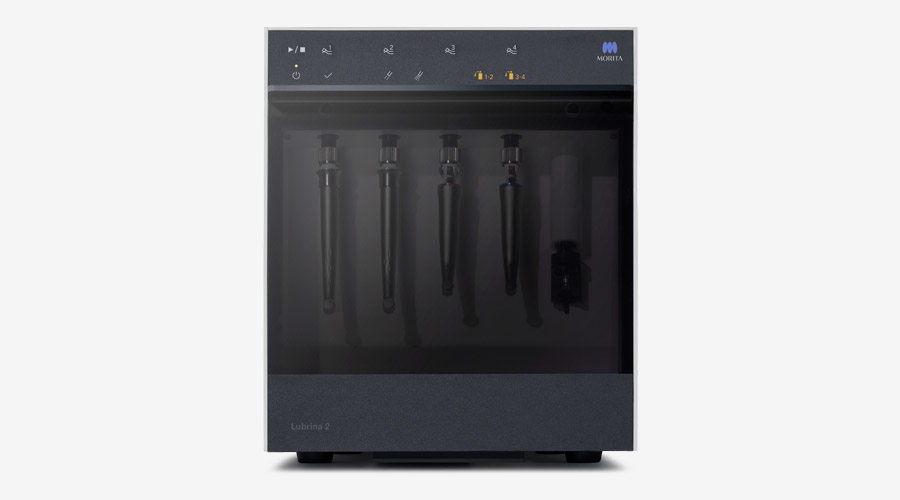

Lubrina 2 (Clean Air-Blow System)

Conventional product*

_{* Original Lubrina Handpiece Maintenance System}

Easy chuck maintenance

For the turbine and 5x speed contra-angle handpiece, it is essential to lubricate and clean the chuck which holds the bar. The built-in one-touch chuck maintenance mechanism allows for easy maintenance.

Water removal during autoclaving

If autoclave is performed while a large amount of water is left in the conduit of the handpiece, steam will not infiltrate and could cause a sterilization defect. To prevent this, clean air (without a mix of oil) is fed into the water feed, chip air conduit to remove the residual water, thereby reducing the possibility of a problem during autoclaving.

Surplus oil removal reduces idling time before practice

During handpiece rotation, clean air removes the surplus oil which causes blow-out, and thus reduces the idling time necessary before use.

Reduces scattering of oil mist

The built-in oil mist suction mechanism draws in the oil mist generated during maintenance, thereby preventing the mist from scattering to nearby surfaces and devices. In addition, since oil mist is collected into the oil gathering tray, maintenance of the equipment is also easy.

Reduced operating sound

Lubrina 2 offers a noise reduction of 15dB during operation compared to the original model.

Easy maintenance

The control panel is flat for easy cleaning, and the front door can also be removed for improved access.

Features

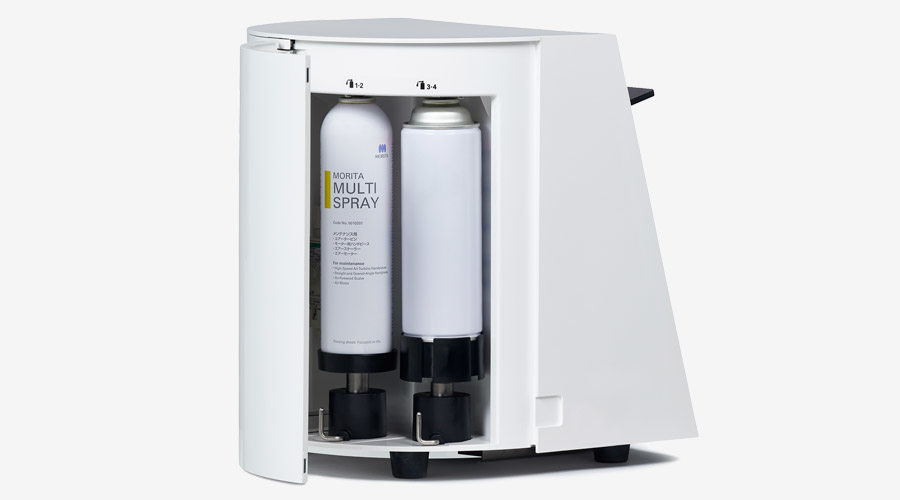

Oil spray can delivery system

The low viscosity oil mist
penetrates into the inside
of the handpiece head and
delivers intense cleaning.

Morita Multi Spray
(sold separately)

This dedicated oil of fers
excellent lubrication properties
and enhances the performance
of TwinPower Turbine and
TorqTech.

Optional Items

Coupling	Target device
Alpha Coupling Code No.: 7376766	TwinPower Turbine p, TwinPower Turbine s	4H Coupling Code No.: 7376715	TwinPower Turbine 4H
KaVo Coupling Code No.: 7376723	KaVo MULTIflex, KaVo MULTIflex LUX	Sirona Coupling Code No.: 7376731	Sirona R/F
W&H Coupling Code No.: 7376758	W&H Roto Quick	LS Coupling Code No.: 7376774	Handpieces, TorqTech and devices with a connection type that comply with ISO3964 (JIS T5904)
TR-ZX2/DP Coupling Code No.: 7376782	Tri-Auto ZX2, Tri-Auto mini, Dentaport ZX	Tri-Auto ZX Coupling Code No.: 7373325	Tri-Auto ZX

Spray Holder	Conforming Spray
Spray Holder (standard)	Morita Multi Spray (LS Spray, AR Spray)
Spray Holder (KaVo/NSK for Pana/Yoshida)	KaVo Spray, NSK PANA SPRAY Plus, YOSHIDA Spray
Spray Holder (for W&H)	W&H SERVICE Oil F1
Spray Holder (for Sirona)	Sirona T1 Spray

Spray
Morita Multi Spray

* The company names and product names are trademarks or registered trademarks of each company.

Technical_details

Brand name:	Lubrina 2
Model:	HIM-2
Power voltage:	AC 100V-240V 50-60Hz
Power consumption:	10-25 VA
Maximum input air pressure:	0.7 MPa max.
Air pressure used:	0.3-0.5 MPa (recommended 0.4 MPa)
Consumed air flow rate:	60-100 NL / min (0.3-0.5 MPa)
Weight:	Approx. 8 kg
External dimensions:	W300×D300×H365mm
Manufactured and sold by:	J. MORITA MFG. CORP.

Functions
Clean Air-blow System (Dual solenoid valves)
Mode 1 (for turbine)
Mode 2 (for contra-angle handpiece)
Flushing mode
Air-blow mode
Chuck maintenance mechanism
Spray can system
Dual spray system
Residual water removal mechanism
Oil mist suction mechanism
Compatible with handpieces manufactured by various companies

Accessories
Oil absorption pad
Oil absorption sheet
Oil absorption sheet for front door
Sheet stopper for door
Power supply cord
Air tube
Spray Holders (standard) x 2
(for Morita Multi Spray)
