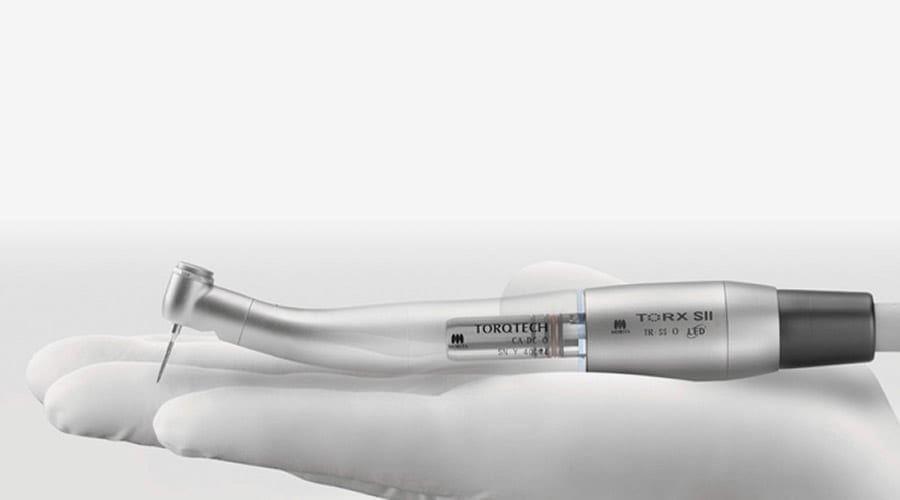

Ergonomics play a central role in the development of our products – so that you can profit from more efficiency and comfort during every treatment. The best example: Our motors which rest perfectly in the hand thanks to their well-balanced and particularly light construction. In this way, they provide the best possible protection against tired muscles. In addition, they have a convincing sophisticated and fail-safe technology – for a guaranteed long service life.

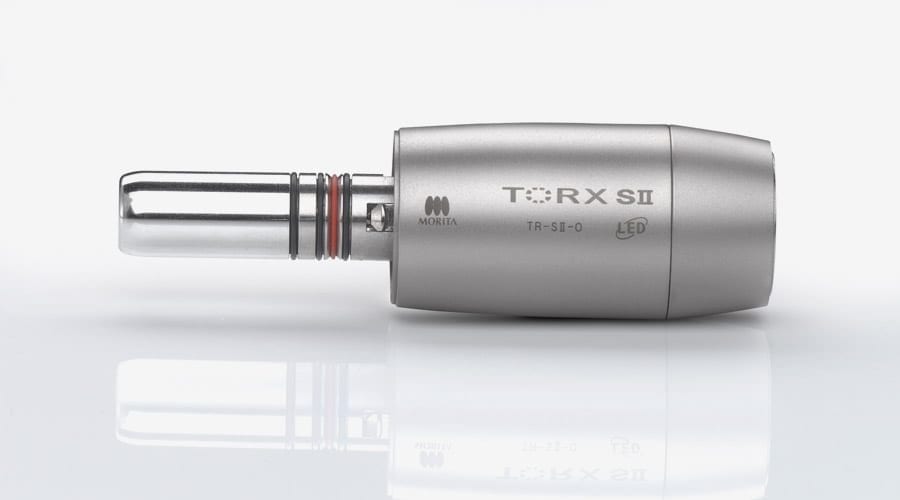

These Torx micromotors have integrated measurement and safety functions such as Auto Torque Control and Auto Apical Control.

Compatibility

The electrically driven micromotors are only available in combination with the treatment units.
For further details, please refer to the technical data.

Product name	Torx SII / SII-R	Torx TR-91
Bild:
Type	TR-SII-O / TR-SII-R-O	TR-91-O
Design	Brushless, electrically driven	Brushless, electrically driven
Light source	Problem-free replaceable LED illuminant	Optional halogen or LED illuminant in plug-in socket
Speed range	100 - 40.000 rpm	100 - 40.000 rpm
Operation	Treatment unit operating panel and foot control	Treatment unit operating panel and foot control
Safety	Handpiece / contra angle locked in place mechanically to prevent unintentional release
Air and water supply lines	Integrated	Integrated
Weight of the handpiece	68 g	95 g
Handpiece dimensions	Ø 22,0 mm L 42,0 mm	Ø 22,0 mm L 60,0 mm
Adjustable torque	✔	--
Integrated endo-function	TR-SII-O: - TR-SII-R-O: measurement function, Auto Torque Control, Auto Apical Control	--
Hygiene	Motor casing removable and sterilizable and/or thermo-disinfectable	Motor casing removable and sterilizable and/or thermo-disinfectable
Compatibility	The following Morita treatment units are fitted with these micro motors: EMCIA UP: TR-SII-O Soaric: TR-SII-O and/or TR-SII-R-O All straight and contra-angle handpieces with iso connectors can be used.	The following Morita treatment units are fitted with these micro motors: Signo Treffert Actus 101 All straight and contra-angle handpieces with ISO connectors can be used.

Product name	Torx SII / SII-R	Torx TR-91
Bild:
Type	TR-SII-O / TR-SII-R-O	TR-91-O
Design	Brushless, electrically driven	Brushless, electrically driven
Light source	Problem-free replaceable LED illuminant	Optional halogen or LED illuminant in plug-in socket
Speed range	100 - 40.000 rpm	100 - 40.000 rpm
Operation	Treatment unit operating panel and foot control	Treatment unit operating panel and foot control
Safety	Handpiece / contra angle locked in place mechanically to prevent unintentional release
Air and water supply lines	Integrated	Integrated
Weight of the handpiece	68 g	95 g
Handpiece dimensions	Ø 22,0 mm L 42,0 mm	Ø 22,0 mm L 60,0 mm
Adjustable torque	✔	--
Integrated endo-function	TR-SII-O: - TR-SII-R-O: measurement function, Auto Torque Control, Auto Apical Control	--
Hygiene	Motor casing removable and sterilizable and/or thermo-disinfectable	Motor casing removable and sterilizable and/or thermo-disinfectable
Compatibility	The following Morita treatment units are fitted with these micro motors: EMCIA UP: TR-SII-O Soaric: TR-SII-O and/or TR-SII-R-O All straight and contra-angle handpieces with iso connectors can be used.	The following Morita treatment units are fitted with these micro motors: Signo Treffert Actus 101 All straight and contra-angle handpieces with ISO connectors can be used.

Torx Micro Motors
